Desko Penta Scanner BGR

The DESKO PENTA Scanner® is a full-page scanner designed to be used in self-service and agent operated environments. As an intelligent device, it supports OCR, barcode and magnetic stripe reading (depending on hardware configuration) within the device itself. It therefore reduces the required performance on the host system itself.

STEP 1: Please download the Device Drivers.

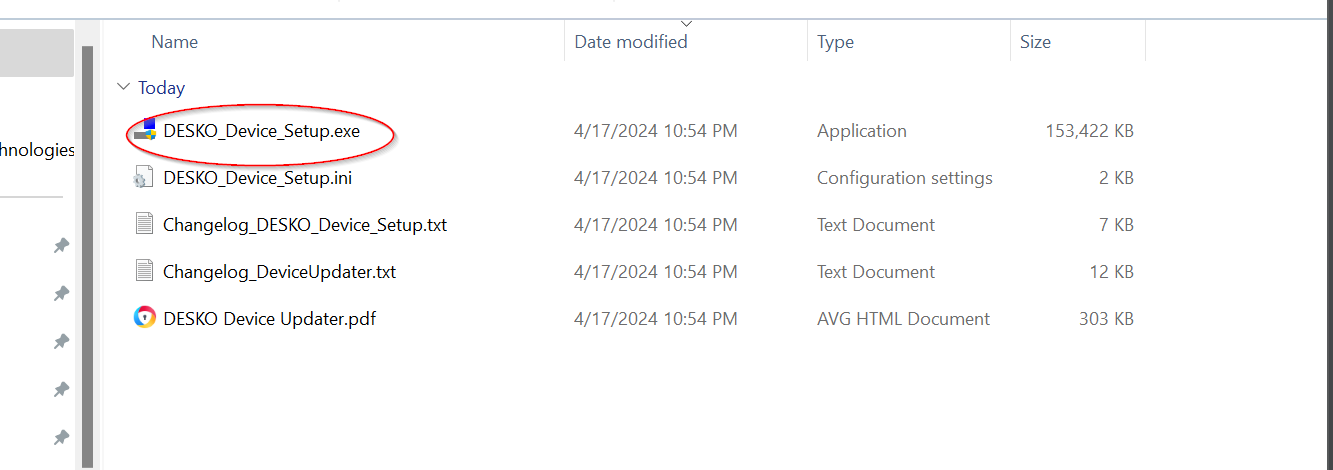

STEP 2: Please select the download area of your PC and click on the zip file.Open the file in the next folder and start with the application DESKO_Device_Setup.exe

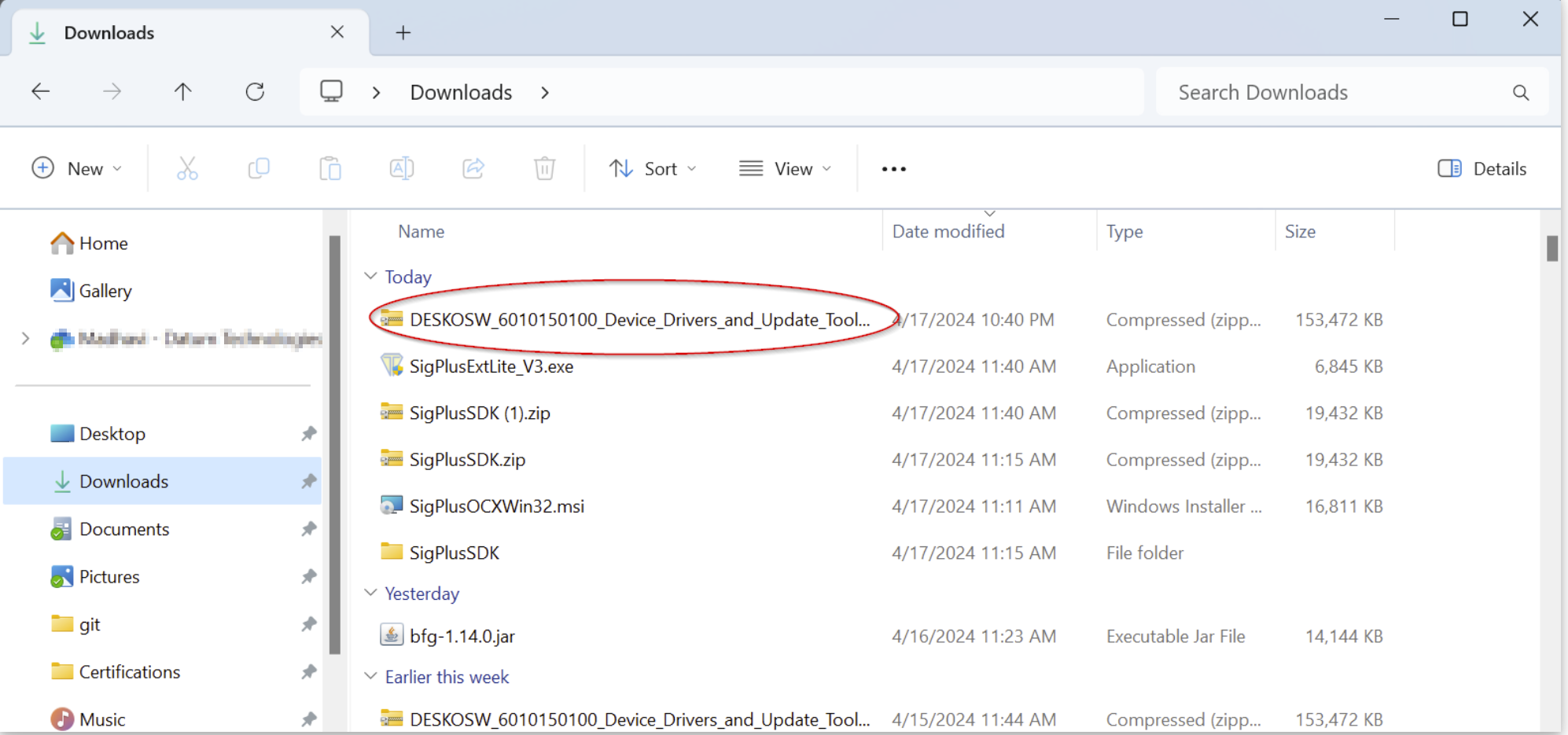

Locate Zipfile

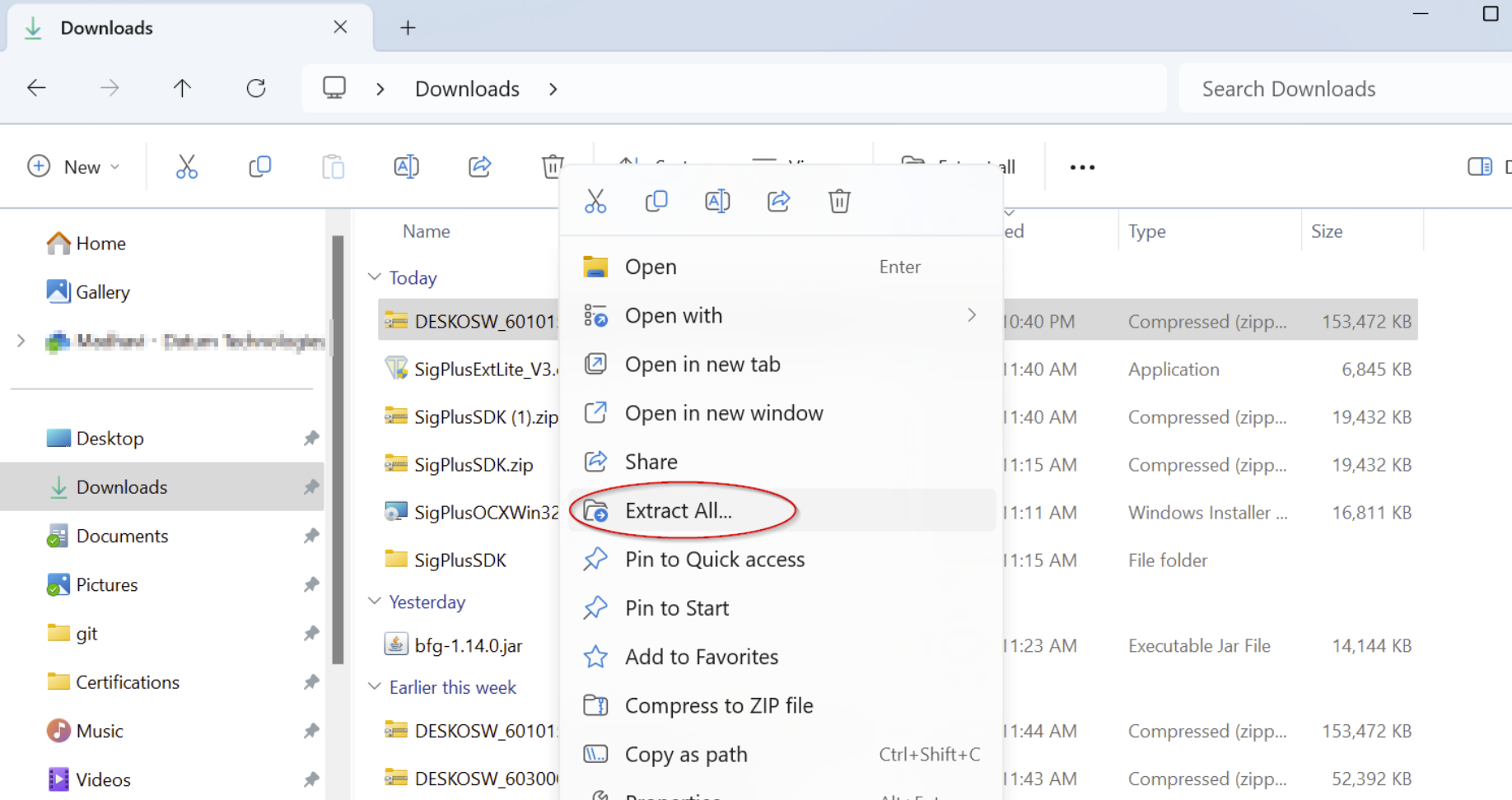

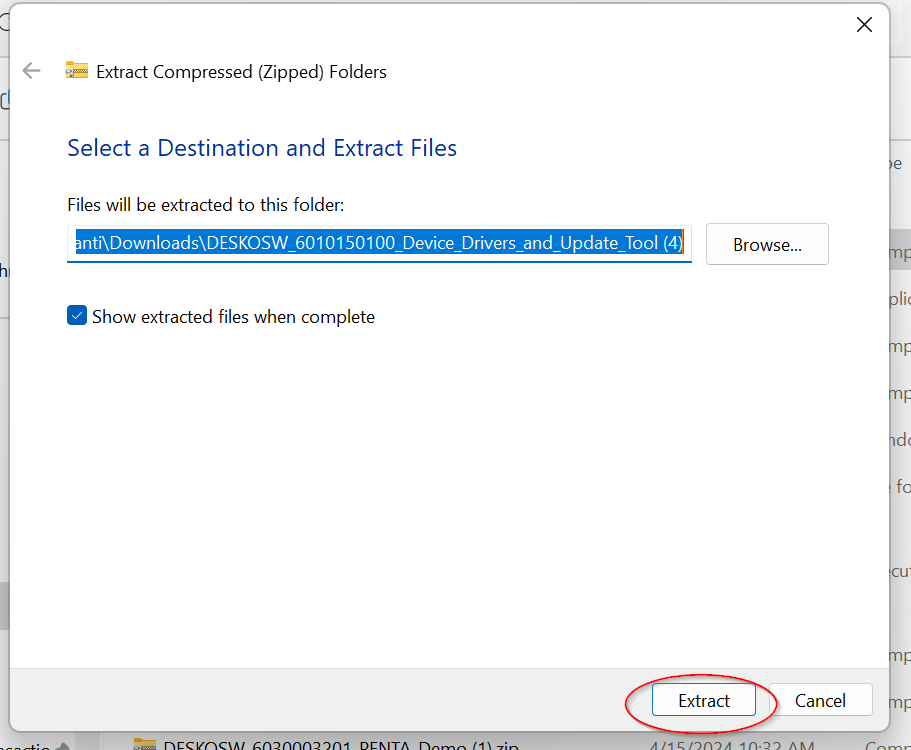

STEP 3: Select the zip file and click by pressing the right mouse button on the field "Extract All…“ and now Extract.

Extract Zipfile

Extract Zipfile

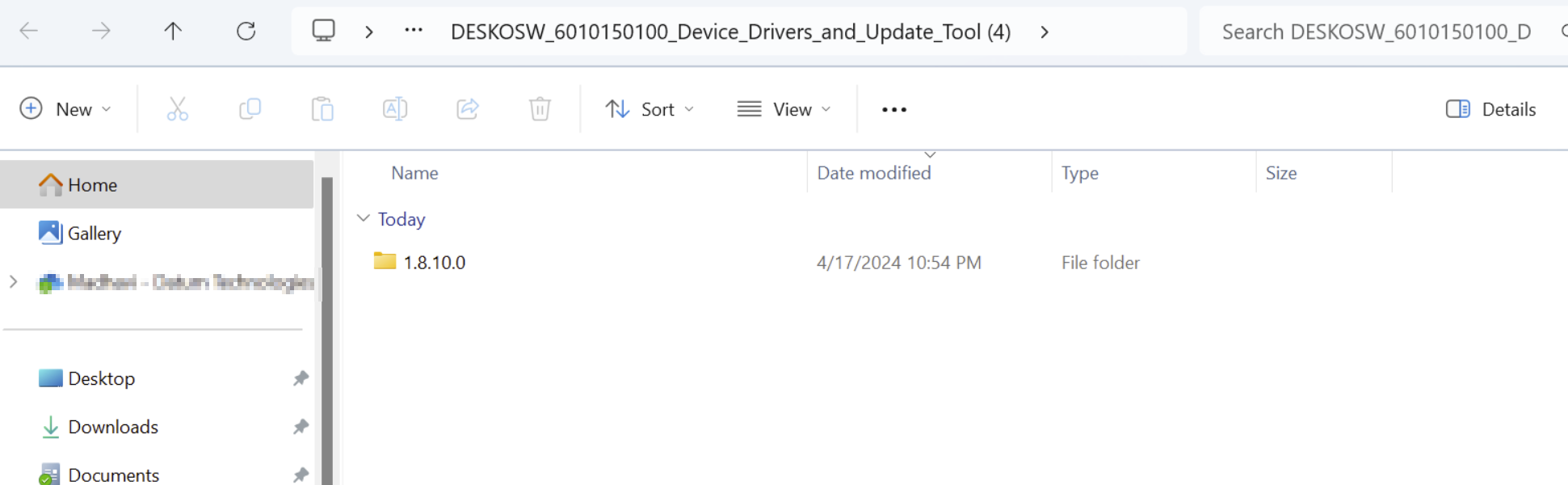

Download version

Download version

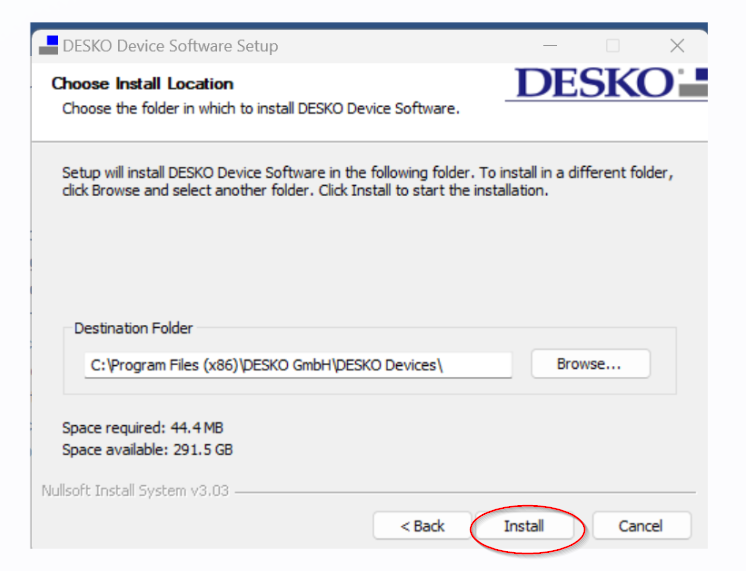

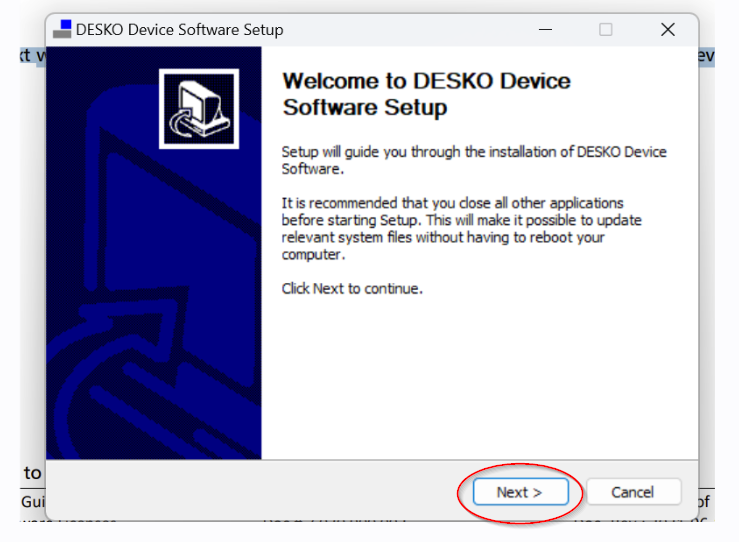

Step 4: In the next window, confirm that the DESKO device software can be installed on your device.

Install Desko

Install Desko

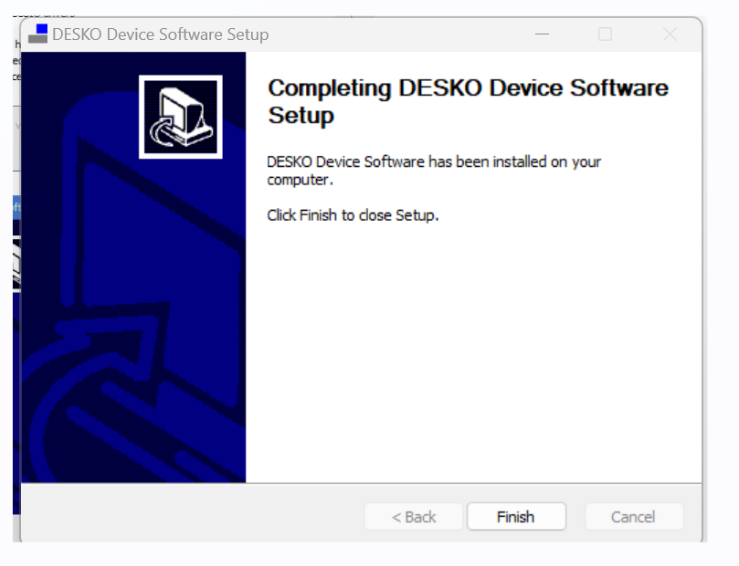

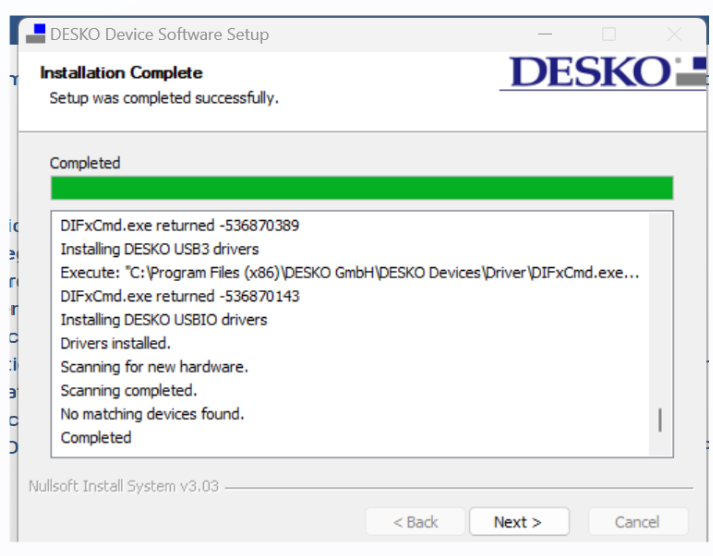

Installation Complete

Installation Complete

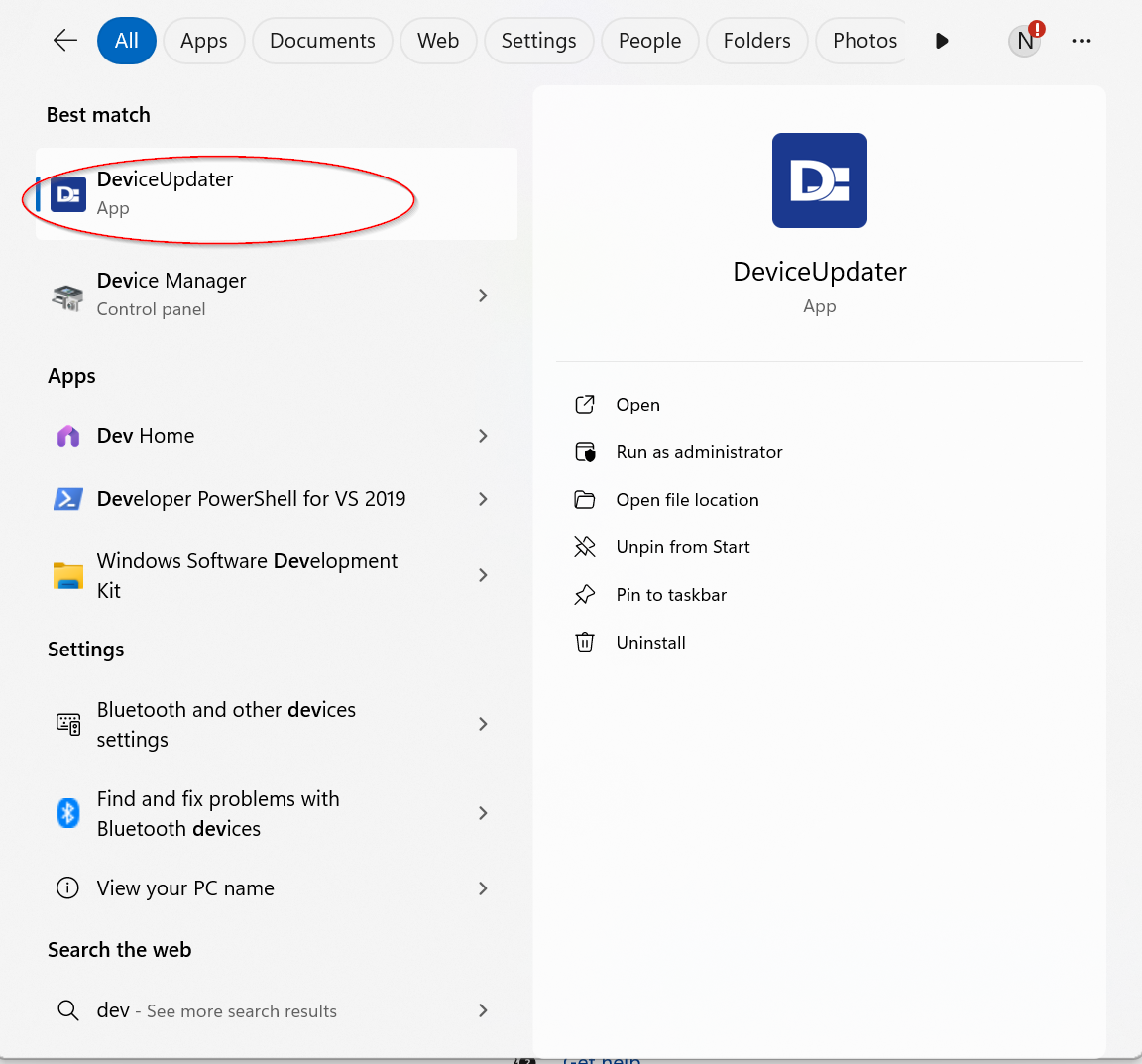

The download is finished. You can verify the installation by clicking on the Windows or start button and search for DeviceU pdater either on your desktop or in your Windows programs.

Device Updater

Connection Verification

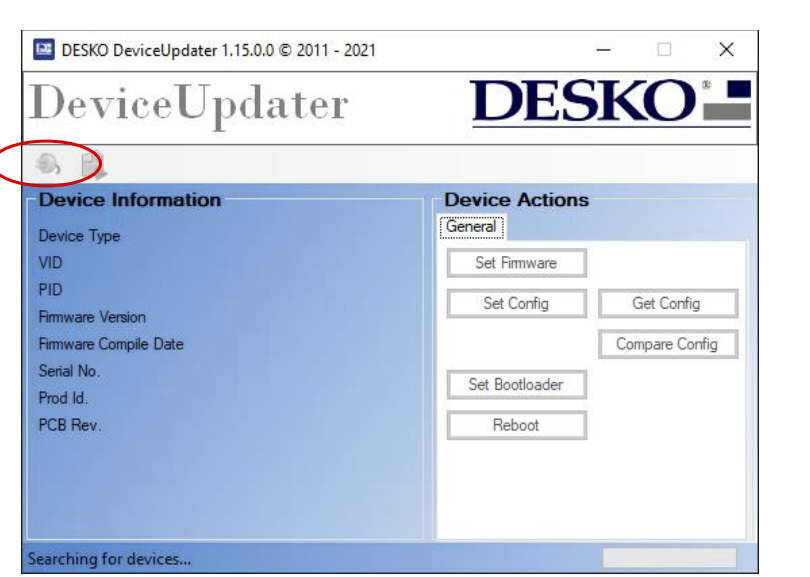

To make sure the device is installed successfully, please connect the Desko device via USB port and launch the DeviceUpdater App.

Device Updater

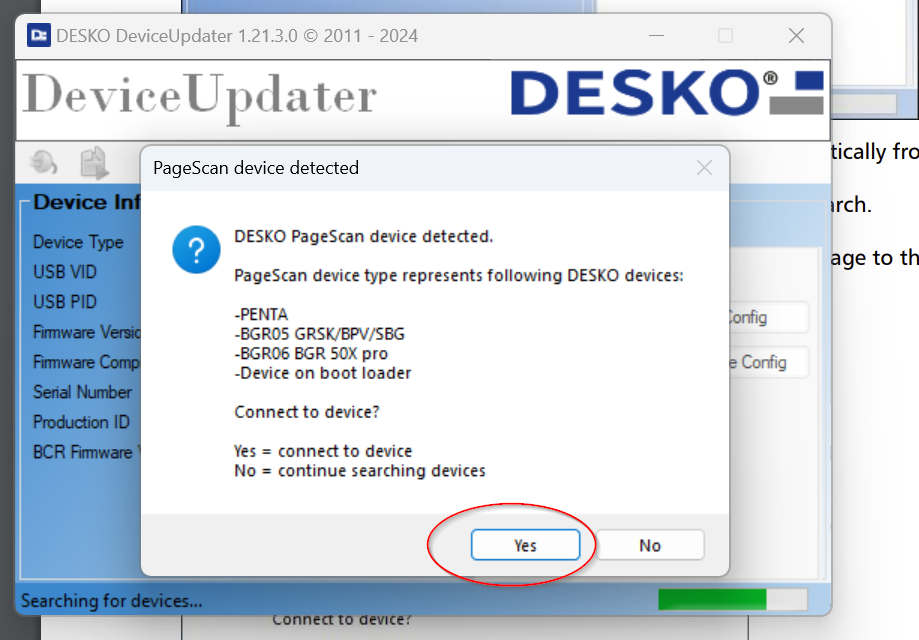

The DeviceUpdater will start searching for DESKO devices automatically from the start of the application. Alternatively you can click (connect device) to start the search. When a device is detected, the DeviceUpdater will prompt a message to the user, asking whether or not a connection to this type of device should be established.

Device Updater

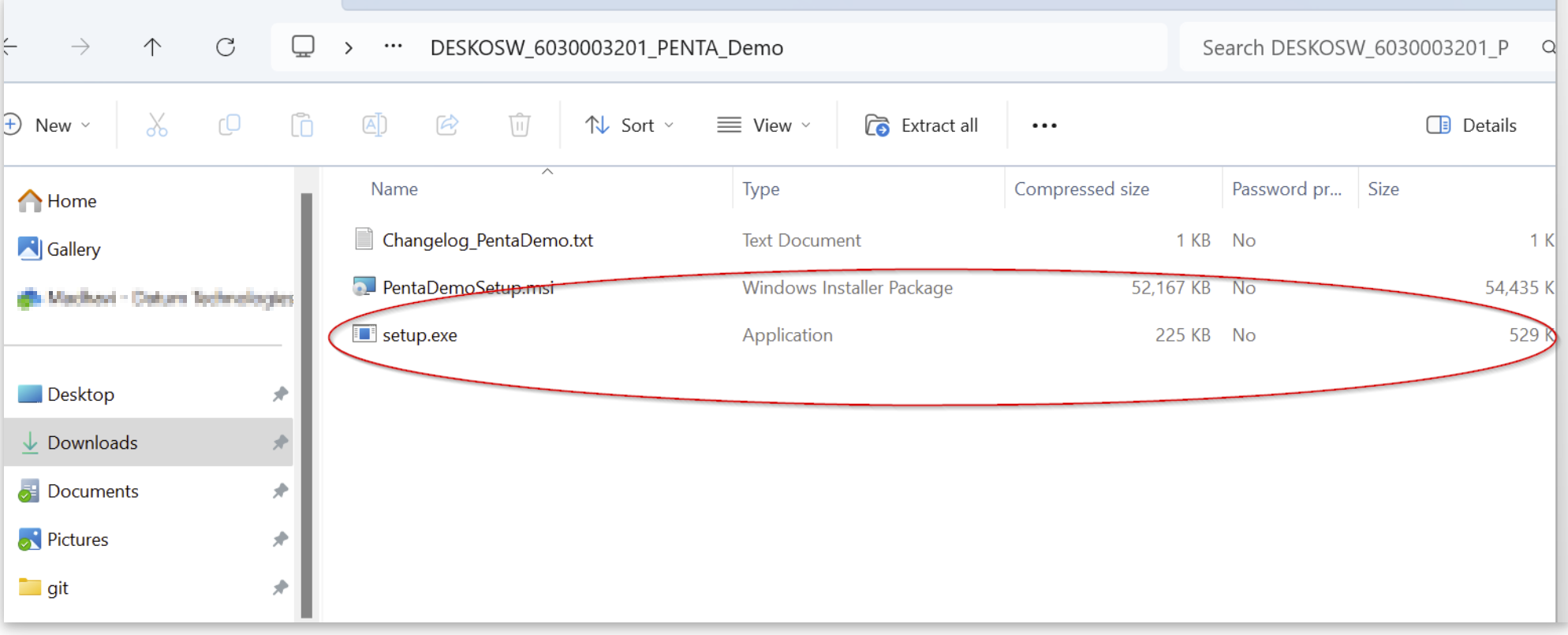

You can verify the same with the DESKO Demo Application page as well. For this download the Demo app and install the application.

Device Updater

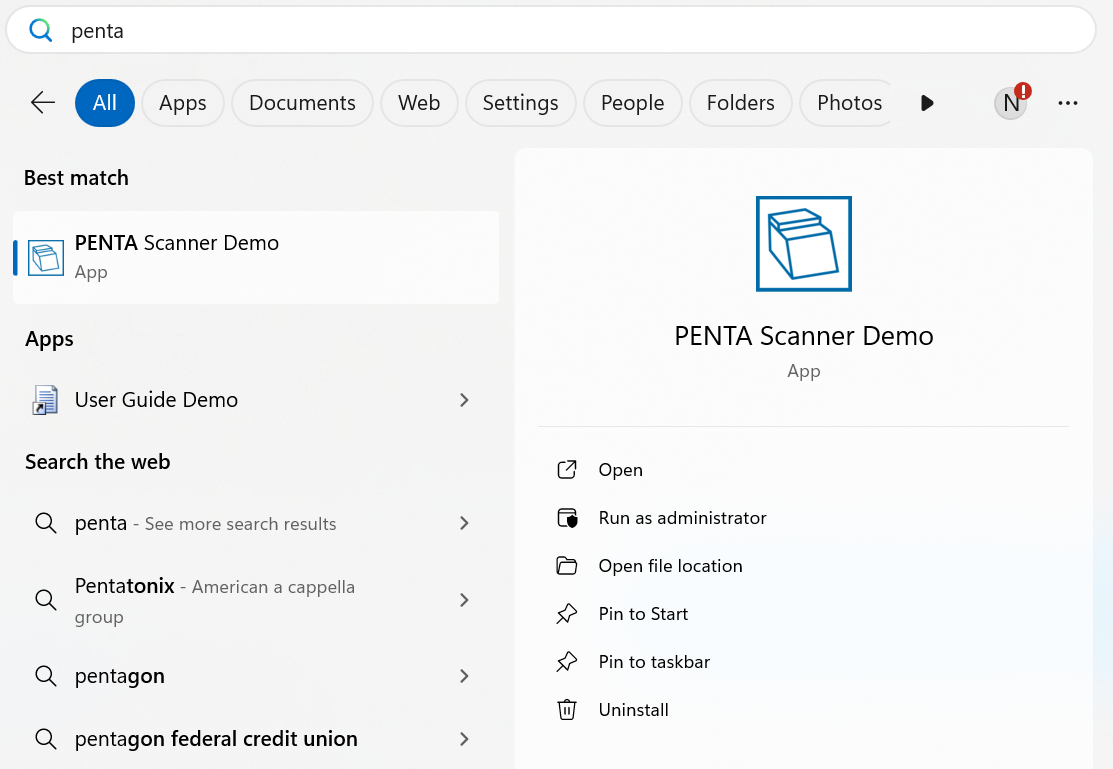

Once installed, verify the installation by clicking upon the start/windows button and search for PENTA Scanner Demo.

Device Updater

Connect the Desko Device and run the Demo application.

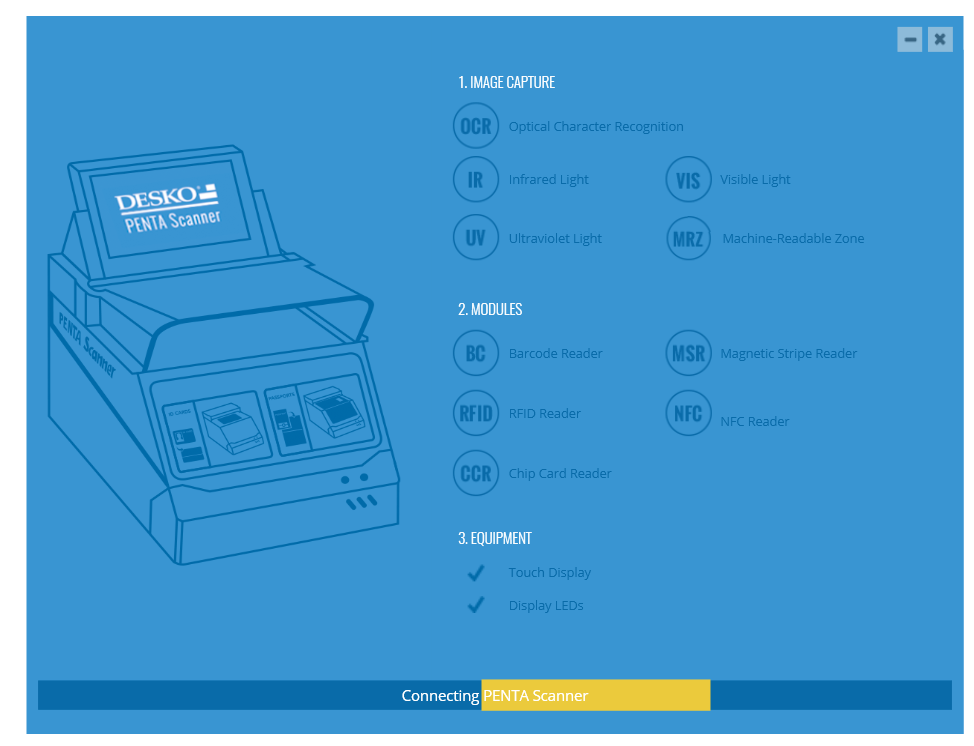

Now open the PENTA Scanner Demo application and it display like this..

Demo App

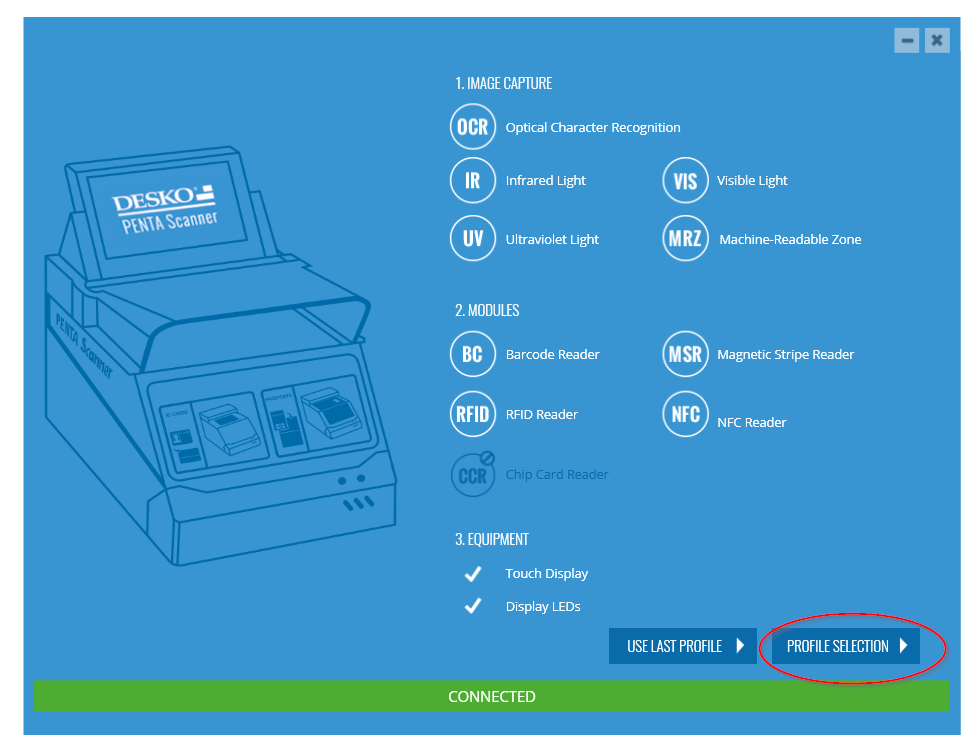

Once it is detected, it shows as connected.

Demo App

Once connected, Click on the Profile Selection.

Note

If you cannot see the entire popup, you might need to change the display resolution of your computer.

The user will be displayed with the different options of Profile selection. Select ALL-IN.

Profile Selection

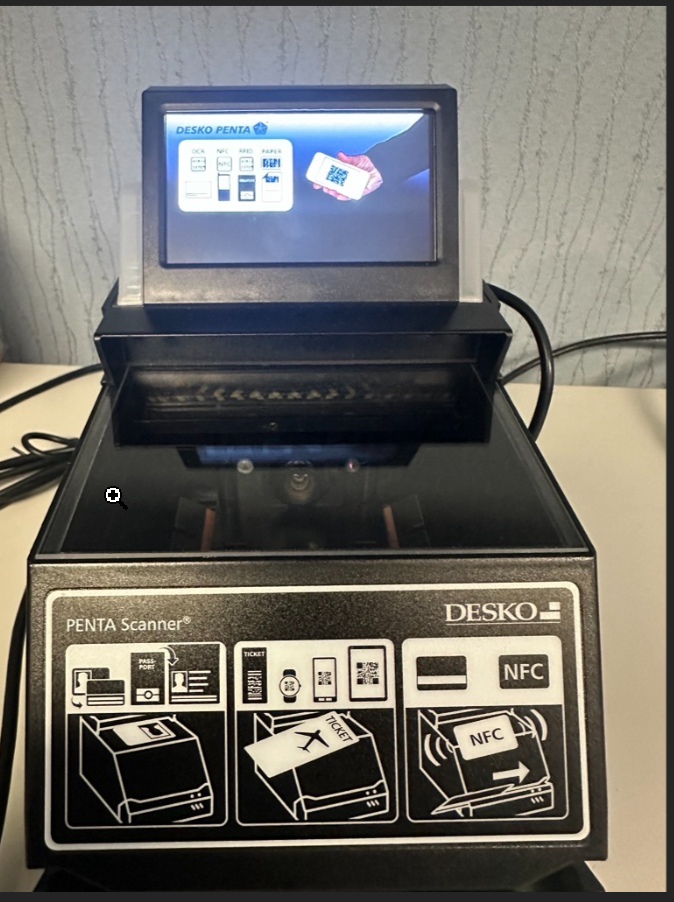

The device display looks like this:

Profile Selection

The scanner is ready to use!

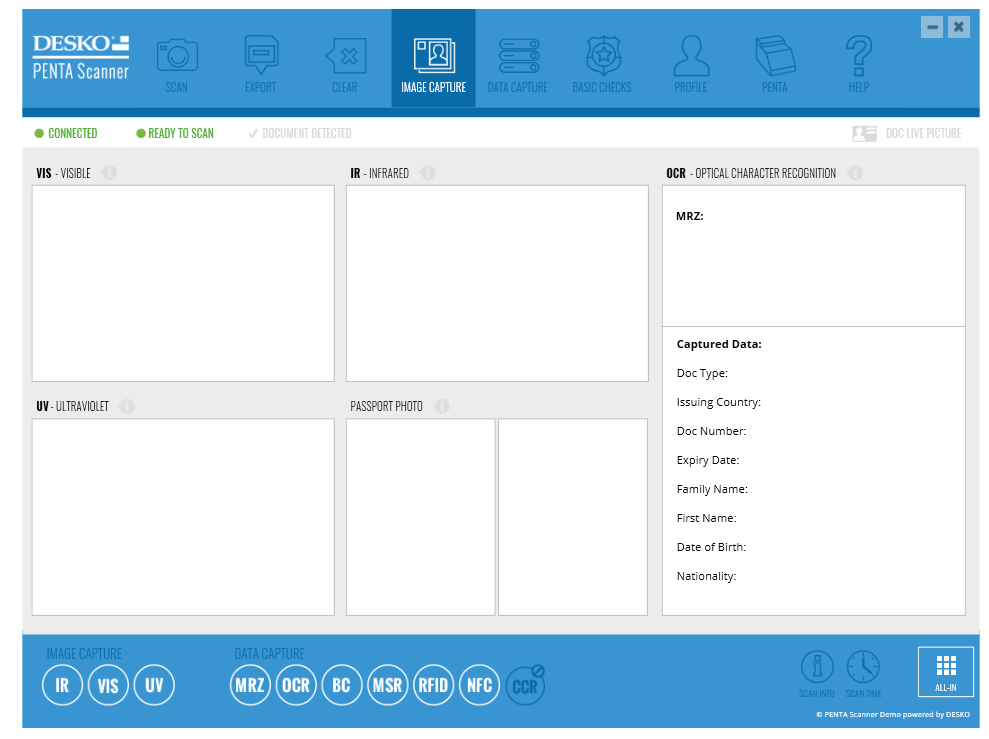

Demo app screen display like this:

Demo app

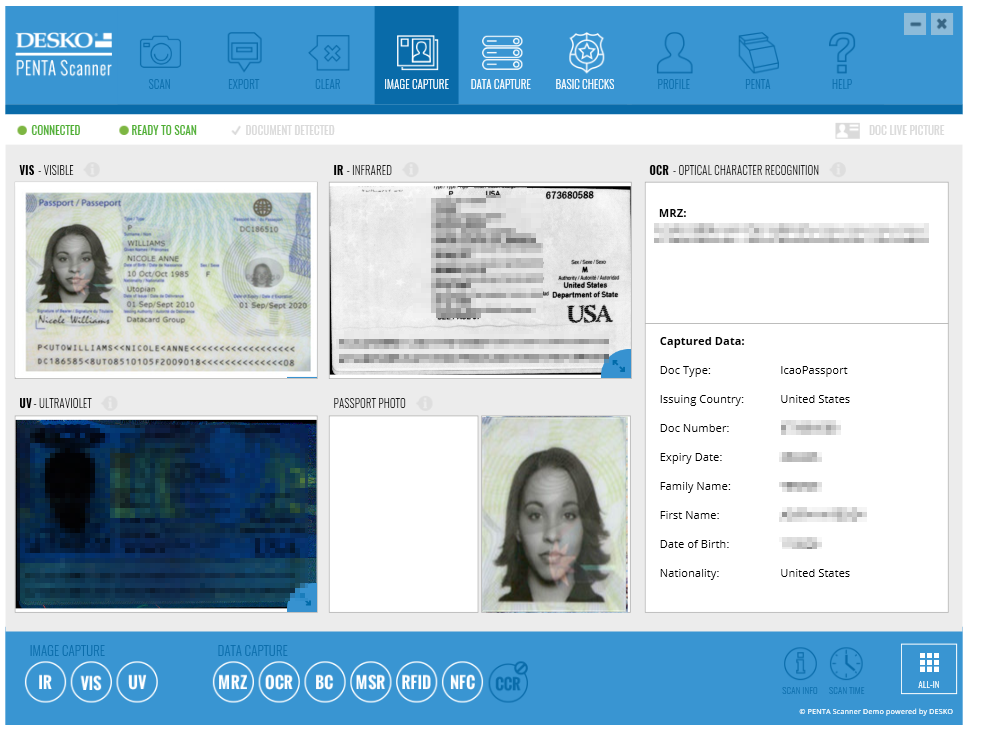

When the documents are scanned the data is captured and displayed in the Demo app.

Sample Passport

Demo app

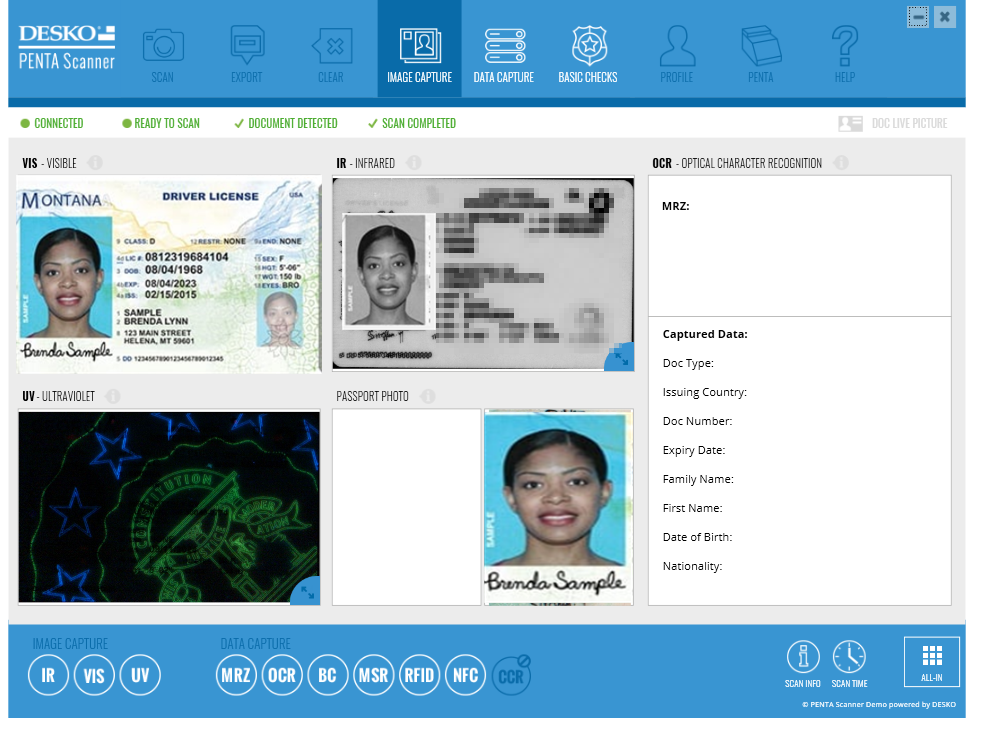

Driver's License

Demo app


Updated As Of Version 6.2.0.0
